EZ-Connect USI-2535
USB 2.0 to SATA & IDE Adapter for 2.5" & 3.5" Hard Drives
  • Supports 2.5” and 3.5” SATA Drive (SSD or HDD)
  • SATA Drive Hot-Swap Capability
  • Supports 2.5”, 3.5”, 5.25” IDE Hard Drive


The EZ-Connect (Model USI-2535) is your portable, compact, and light weight Hi-Speed USB 2.0 to SATA/IDE Adapter that lets you easily attach an external SATA or IDE drive and instantly access the drive from your PC thru the USB port. The EZ-Connect adapter can support either SATA (hard drive or SSD) or IDE hard drive in 2.5” or 3.5” form factors of up to 6TB disk size. The Hi-Speed USB interface offers plug-and-play capabilities with bandwidth of up to 480Mbps.

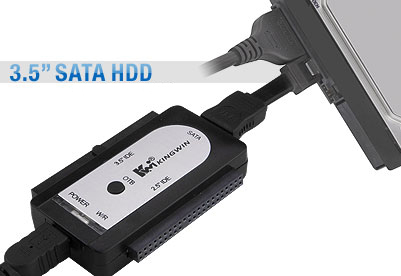

Connecting the drive is simple and easy. The EZ-Connect adapter has a 3-in-1 drive connector with a 3.5” IDE connector on one side and a 2.5” IDE connector on the other side for attaching IDE drives, and a SATA connector in front to attach the SATA data cable and the 2.5”/3.5” SATA drive. (Note: You can only attach one drive at a time). External AC/DC power adapter and SATA power connector are included to supply power to the hard drive. Then simply plug the USB cable into your computer and the drive is automatically recognized. No driver installation needed.

The EZ-Connect adapter also comes with a built-in One Touch Backup (OTB) button feature for backing up your files instantly. Just plug the EZ-Connect adapter to your computer and press the OTB button to automatically run the EZ-Connect backup software program. (Note: You will need to install the EZ-Connect software first to your computer running Windows.)

The EZ-Connect is your affordable, intelligent, and easy all-in-one USB solution for connecting external SATA/IDE drive to your computer.


  • Model : USI-2535
  • Hi-Speed USB 2.0 to SATA or IDE Interface (up to 480Mbps)
  • Supports 2.5” and 3.5” SATA Drive (SSD or HDD)
  • SATA Drive Hot-Swap Capability
  • Supports 2.5”, 3.5”, 5.25” IDE Hard Drive
  • Supports Hard Drive up to 6TB disk size
  • Includes One Touch Backup (OTB) Button
  • Dual output power supply with standard 4 pin power output and new SATA power output
  • LED indicator for HDD Access and Power status
  • Screw-less and Easy-to-Connect Design
  • Compatible with Windows and Mac OS (No drivers needed)
  • Includes EZ-Connect adapter, USB 2.0 cable, power adapter, SATA data cable, SATA power connector, and User Manual (HDD not included)


Product Type:

Hi-Speed USB 2.0 to SATA/IDE Drive Adapter


USB 2.0 (can also plug to USB 3.0 port running at USB 2.0 speed)

HDD Interface:

2.5”/3.5” SATA I/II Hard Disk Drive (HDD) or Solid-State Drive (SSD) 2.5”/3.5” IDE Hard Drive (HDD)

Number of Drives:


Max. Transfer Rate:

USB 2.0 (up to 480Mbps)
SATA II (3Gbps)

HDD Capacity:

Up to 6TB per drive

HDD Supported OS:

Compatible with Windows and Mac (no drivers needed)

LED Indicators:

1 x Power and 1 x Drive R/W Access


1.5 lbs (681g) / Unit
