USI-2535SIU3
USB 3.0 to SATA & IDE Adapter for 2.5" & 3.5" Hard Drives

FEATURES:
  • Supports 2.5” and 3.5” SATA Drive (SSD or HDD)
  • SATA Drive Hot-Swap Capability
  • Supports 2.5”, 3.5”, 5.25” IDE Hard Drive


AWARDS:
Gallery


Overview


The EZ-Connect (Model USI-2535SIU3) is your portable, ultra-compact, and lightweight SuperSpeed USB 3.0 to SATA & IDE Adapter that lets you easily attach an external SATA or IDE hard drive and instantly access the drive from your PC thru the USB port. The EZ-Connect adapter can support either SATA (SSD or HDD) or IDE hard drive in 2.5”, 3.5”, or 5.25” form factors and up to 6TB disk size.

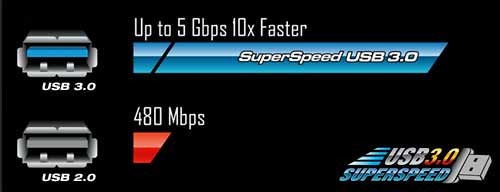

SuperSpeed USB 3.0

SuperSpeed USB 3.0 interface has a maximum data transfer speed of up to 5Gbps offering 10X faster performance over Hi-Speed USB 2.0 interface while still retaining backward compatibility and interoperability with all PC USB ports, hubs, and devices. SuperSpeed USB 3.0 also works well with latest Windows 8 and Mac OS X and offers easy plug and play capabilities with no driver installation required.

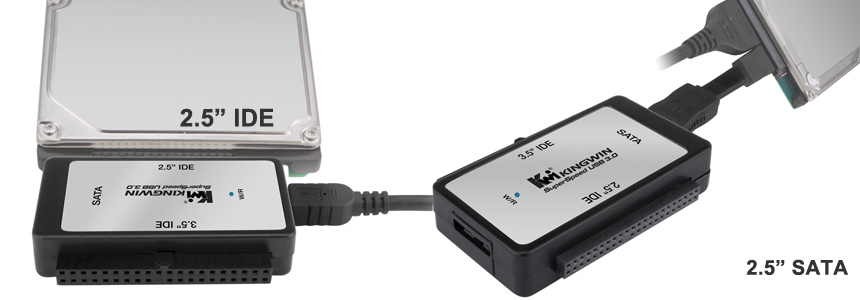

3-in-1 SATA/IDE Connection

Connecting the drive is simple and easy. The EZ-Connect 3-in-1 drive interface provides a 3.5” IDE connector on one side and a 2.5” IDE connector on the other side for attaching IDE drives, and a SATA connector in front to attach the SATA data cable and the 2.5”/3.5” SATA drive. (Note: You can only attach one drive at a time).

External AC/DC power adapter and SATA power connector are included to supply power to the hard drive if needed. Simply plug the USB cable into your computer and the drive is automatically recognized. You can also hot-swap SATA hard drives while the USB is plugged into the computer. The EZ-Connect is your all-in-one solution for connecting external SATA or IDE hard drive.

Features


  • Model: USI-2535SIU3
  • SuperSpeed USB 3.0 to SATA or IDE Interface (up to 5Gbps)
  • Supports 2.5” and 3.5” SATA Drive (SSD or HDD) with Hot-Swap Capability
  • Supports 2.5”, 3.5”, 5.25” IDE Hard Drive
  • Supports Hard Drive up to 6TB disk size
  • Dual output power supply with standard 4 pin power output and new SATA power output
  • LED indicator for HDD Read/Write Access
  • Screw-less and Easy-to-Connect Design
  • Compatible with Windows and Mac OS (No drivers needed)
  • Includes EZ-Connect adapter, USB 3.0 micro-B cable, AC power adapter, SATA data cable, SATA power connector, and User Manual (HDD not included)

Specifications


Model Number:

SuperSpeed USB 3.0 to SATA/IDE Drive Adapter

Product Type:

SuperSpeed USB 3.0 to SATA/IDE Drive Adapter

PC Interface:

USB 3.0 port (up to 5Gbps)
USB 2.0 port (up to 480Mbps)
Number of Drives:

1
HDD Interface:

2.5”/3.5” SATA I/II/III Hard Disk Drive (HDD) or Solid-State Drive (SSD) 2.5”/3.5” IDE Hard Drive (HDD)
Max. Transfer Rate:

USB 3.0 (5 Gbps)
SATA III (6Gbps)

HDD Capacity:

Up to 6TB per drive

Supported OS:

Compatible with Windows and Mac (no drivers needed)
LED Indicators:

1 x Power / Drive R/W Access
Weight:

1 x Power / Drive R/W Access

Awards


07/30/14 The Kingwin EZ-Connect allows you to connect either Parallel ATA type drive or a Serial ATA drive to your computer via a USB 2.0 cable. Indeed, the idea is quite interesting. It surely would eliminate the need for multiple adapters, not to mention having to open up your computer to install the drive. It is also supposed to be completely plug and play, so no need to configure your system for the new drive. The Kingwin EZ-Connect sounds like a data migration dream come true. ProClockers.com
