KM-U3MSATA
USB 3.0 Mini SATA SSD Enclosure Adapter
FEATURES:
  • Plug-and-Play
  • Hot Swap Compatible
  • Compatible with SATA Version I/II/III
Gallery


Overview


The KM-U3MSATA is a USB 3.0 Mini-SATA SSD Enclosure Adapter that allows you to attach a 50mm Mini-SATA (mSATA) SSD and convert it into a USB 3.0 external portable slim drive. Elegant, stylish, ultra-lightweight, and durable, the KM-U3MSATA is one of the smallest, fastest, and slimmest USB-to-SSD enclosures in the market.

Mini-SATA (mSATA)

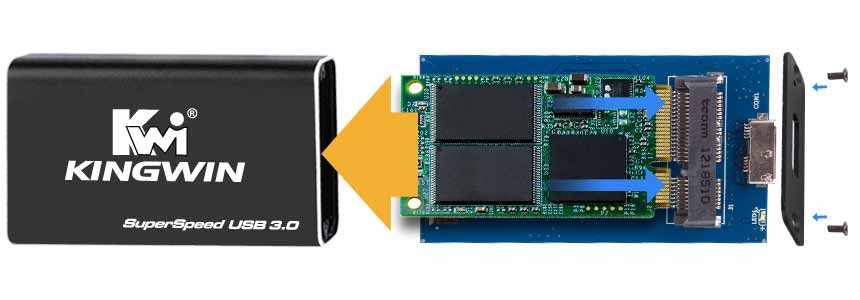

Mini-SATA or mSATA is a new case-less form factor of SSD, measuring roughly 50mm long, 30mm wide and 4.75mm high. Mini-SATA SSD offers faster performance, lower power consumption, higher reliability, and ruggedness in a small and lightweight form-factor. The KM-U3MSATA adapter board allows you to easily insert the mSATA module thru the 52-pin SSD connector and push it downwards to fasten.

The KM-U3MSATA is compatible with SATA I/II/III (1.5/3.0/6.0 Gbps) versions. Currently mSATA SSD are available up to 1TB of storage with sequential read/write performance reaching 500MB/sec.

SuperSpeed USB 3.0 with UASP

SuperSpeed USB 3.0 PC interface offers 10X faster performance (5Gbps) over Hi-Speed USB 2.0 (480Mbps) while still retaining backward compatibility and interoperability with all PC USB ports and devices. SuperSpeed USB 3.0 also works well with the latest Windows 8 and Mac OS X with no driver installation needed.

USB Attached SCSI Protocol (UASP) is a new USB 3.0 protocol that replaces the older USB 2.0 BOT protocol. Unlike BOT protocol that transfers data and commands on a same pipe and commands are processed one at a time, UASP sends data and command in separate pipes and multiple commands are processed in parallel, therefore further increasing performance and lowering CPU utilization. UASP is fully supported in Windows 8 and Mac OSX (10.8 or above).


NOTE: It is required that the PC host system is also UASP compliant.

The KM-U3MSATA supports USB plug-and-play and is powered directly from the USB port (no external power needed). Simply insert the mSATA into the KM-U3MSATA enclosure and then plug the enclosure into the USB port of your computer to instantly access the mSATA drive. No extra driver installation required.

Elegant and Ultra-Lightweight

The KM-U3MSATA comes in an elegant, stylish, and durable aluminum black casing with silver lining. It is ultra-compact and ultra-lightweight weighing just 50g (0.11lbs) so it is small and light enough to fit in your pocket and conveniently carry with you anytime.


Features


  • Model: KM-U3MSATA
  • External USB 3.0 to Mini-SATA (mSATA) SSD Enclosure
  • Elegant and Durable Aluminum Construction
  • Supports 50-mm mSATA SSD
  • ASMedia ASM1053E USB 3.0 to SATA 6G controller chip
  • Supports UASP (USB Attached SCSI Protocol) for even faster performance (requires UASP capable PC host system).
  • Compatible with SATA I/II/III (1.5/3.0/6.0 Gbps) mSATA SSD
  • Supports up to 1TB mSATA SSD
  • Up to 5 Gbps Data Transfer Rate in USB 3.0 port
  • Compatible also with USB 2.0 (480Mbps) port
  • Powers directly from USB port
  • Plug-and-Play and Hot-Swap Capability
  • Windows & Mac OS Compatible (no driver installation needed)
  • Includes USB 3.0 A to Micro B cable and mini-screwdriver (mSATA SSD not included)

Specifications


Model Number:

KM-U3MSATA

Product Type:

SuperSpeed USB 3.0 to mSATA SSD Converter Enclosure

Chipset:

ASMedia ASM1053E USB 3.0 to SATA 6G Controller (with UASP)

PC Interface:

USB 3.0/USB 2.0

Drive Installation:

Fixed Enclosure Casing (includes mini-screwdriver)

Max. Transfer Rate:

USB 3.0 (up to 5Gbps) with UASP support
SATA III (6Gbps)

SSD Capacity:

Up to 1TB capacity (mSATA SSD not included)

Supported OS:

Windows 8/8.1, 7, Vista, XP, 2000, ME, 98SE
Mac OSX 10.2 and above

Dimensions:

2-7/8" (L) x 1-5/8" (W) x 1/2" (H)
74mm (L) x 43mm (W) x 13mm (H)

Weight:

0.11 lbs (50g)
