3.5" Internal Tray-less Hot Swap Rack

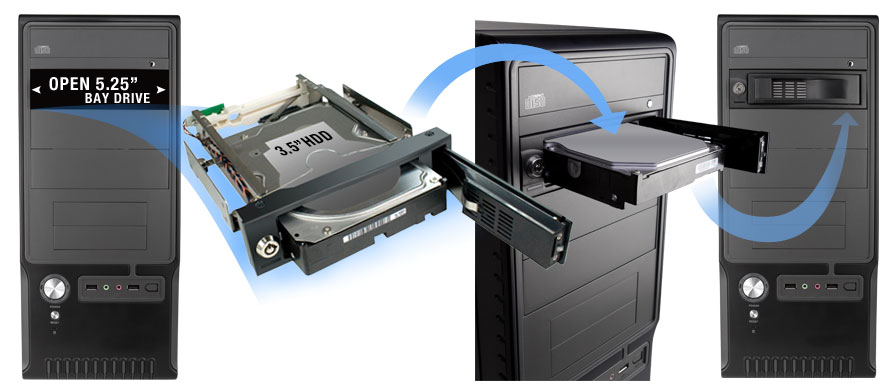

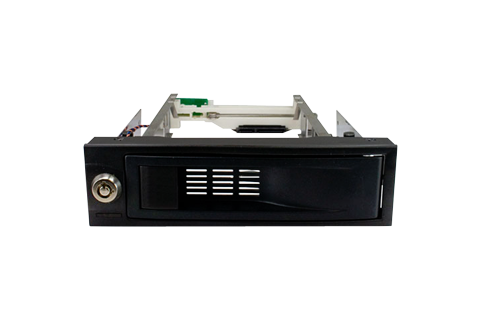

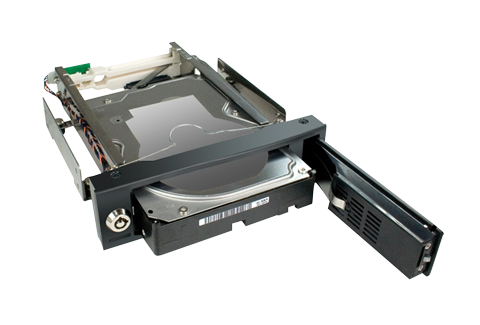

The KF-1000-BK is an internal 3.5” SATA drive mobile rack enclosure that fits easily into the 5.25” half-height front bay slot of most desktop or server PC. This slick tray-less enclosure allows SATA drive hot-swap and includes a front cover door, air vents, Power and HDD access LED indicators, and key lock protection for securing your hard drive.

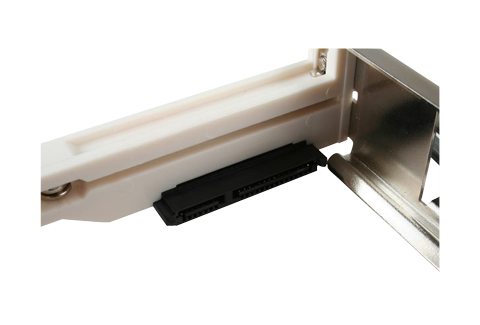

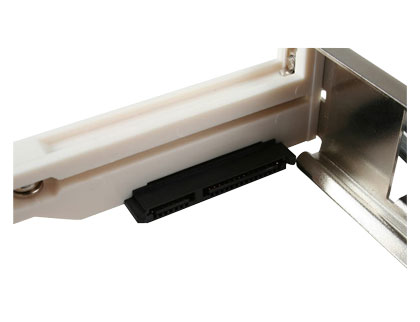

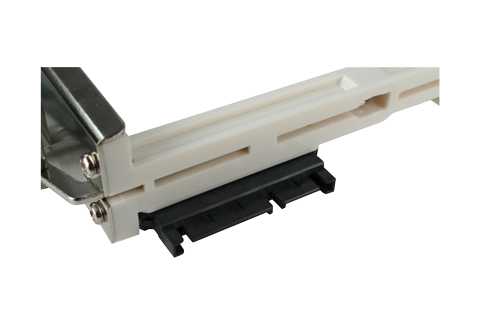

The KF-1000-BK design is light, durable and easy to assemble. This enclosure uses patented Non-Scratch SATA (NSS) connector to prevent your hard drive connector from damaging and is tested with an insertion rate up to 50,000 times. Special silicon rubber anti-shock system is built on each side of the rack to provide added hard drive shock absorption and noise reduction. The KF-1000-BK also lets you to easily install or remove the hard drive without any tools for fast and easy hot swapping. The tray-less design also provides effective hard drive heat dissipation.

The KF-1000-BK is ideal for all desktop and server PC use and is compatible with most PC casing and SATA-based computers and motherboards.


  • Model : KF-1000-BK
  • 3.5” Internal SATA Drive Enclosure
  • Supports all 3.5” SATA I/II/III Drives (depends on PC motherboard)
  • Compatible with SATA Version I / II / III (1.5/3.0/6.0 Gbps) SSD
  • Fits into 5.25” front bay of most PC casing
  • No inner tray required
  • Supports SATA drive hot-swap

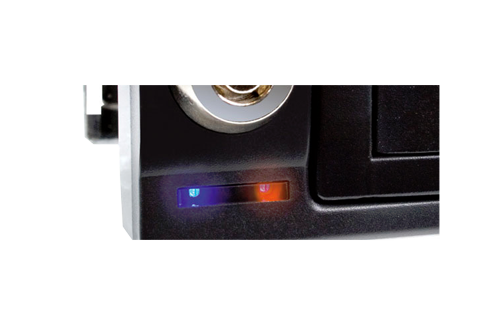

  • Power and HDD Access LED indicators

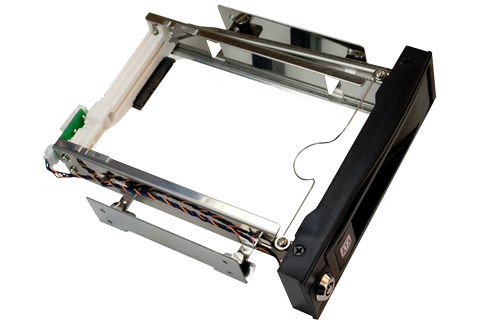

  • 1.0mm guide wire for slim HDD

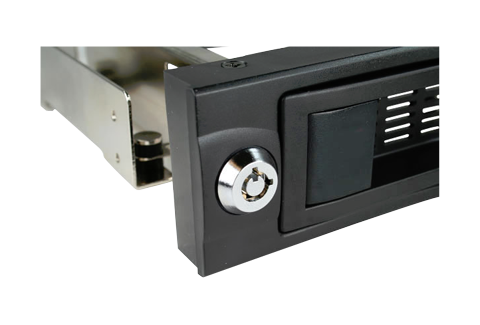

  • Easy open latch door with Safety key lock

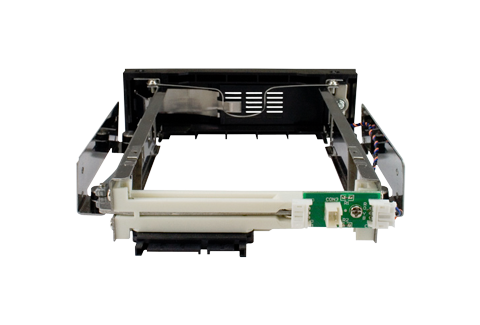

  • Patent NSS (Non-Scratch SATA connector)
  • Up to 50,000 times insertion rate

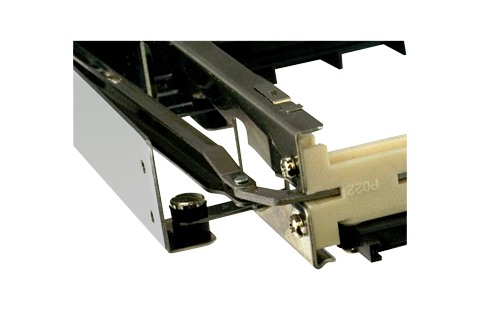

  • Special silicon anti-shock system
  • Compatible with all PC casing/chassis
  • Support for up to 4TB HDD




Product Type:

3.5” SATA Drive Internal Mobile Rack Enclosure



HDD Interface:

3.5” SATA I/II/III Hard Disk Drive (HDD)

Max Transfer Rate:

Up to 6Gbps (SATA III)

PC Assembly:

5.25” half-height front bay slot

Security Key Lock:


SATA Connector:

Patent NSS (Non-Scratch SATA)

Insertion Rate:

50,000 times



LED Indicators:

1 x Power and 1 x HDD Access


182 (W) x 146 (L) x 42 (H) mm


2 lbs (907g)
